ONEPOLE PRO 1500
The base of the ONEPOLE. Height 1500 mm. Innumerable combinations and customization make the ONEPOLE a fit for any project. Can be rotated 180 degrees to be mounted to the ceiling in parking basements with limited space. ONEPOLE is produced with seawater-resistant aluminum and coated with Jotun powdercoat for optimal protection, even along the shoreline. ONEPOLE is available in desired RAL color to suit your surroundings. Delivered with centerdistance on bolts C/C 160 or 140 mm for attachment to standard foundations or ONEPOLE PRO Base Mount foundation. The footplate is designed for versatile mounting options, allowing it to be easily installed on both ceilings and floors.
Net Weight7,32kg
Gross Weight7,75kg
Net Dimension1494x220x220mm
Gross Dimensions1515x225x225mm
MaterialPowder-coated searesistant aluminum
Color (standard)RAL9005
Surface TreatmentPowdercoated ISO 12944, Category C4
Protection ClassClass I, must be connected to PE
Accessories4 pcs. M20 Plastic washer DIN125 (for CC160 footplate)
Premounted4 pcs. M5x20 CS DIN7991
4 pcs. M5x10 CS DIN7991
1 pcs. Blind lid
1 pcs. Access panel

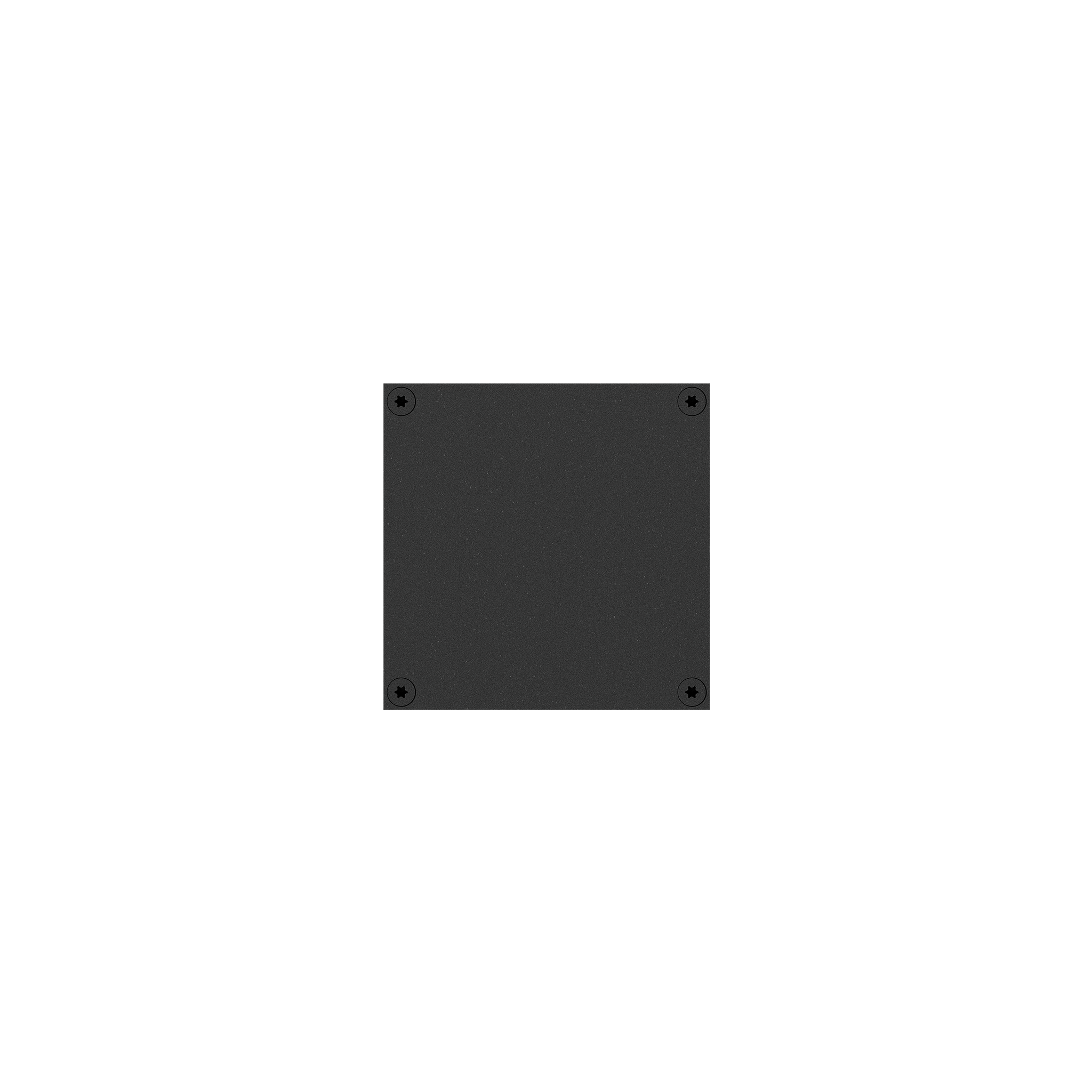

1 pcs. Top lid
Grounding:
1 pcs. M6 nut DIN934
M6 washer DIN127B
M6 washer DIN125A
